Quick Details

  • Brand Name: Foxun
  • Model Number: SX-SP142E-HD4K2K
  • Place of Origin: Guangdong, China (Mainland)
  • Type: HDMI Splitter
  • Product Type: HDMI Splitter 4K2K
  • Product name: HDMI Splitter 1x2
  • Ports: 1 Input 2 Output
  • HDMI Version: HDMI 2.0
  • Other Name 1: Splitter/Divisor HDMI 1x2
  • Other Name 2:: HDMI Divider/Distributor 1 to 2
  • Transmission Distance: up to 15m over standard HDMI cable/26AWG
  • Max. Voltage: 5V
  • Name: Hotsale HDMI Splitter 4K hdmi splitter 1x2 1 in 2 out Support 4K@60hz

Packaging & Delivery

Packaging Details Packing Information :
1.Gross weight:0.52 Kg/Pcs
2.Box Size:L20.5xW15xH5.7cm
3.Carton Size:L43*W32*H31cm 20PCS/CTN,12Kg/CTN
Hotsale HDMI Splitter 4K hdmi splitter 1x2 1 in 2 out Support 4K@60hz
Accessories:
1pcs Manual
1 pcs Power Supply,DC 5V1A
Delivery Time Shipped in 3 days

Hotsale HDMI Splitter 4K hdmi splitter 1x2 1 in 2 out  Support 4K@60hz

Product Description

Features



1). Distribute 1 Ultra HD source to 2 Ultra HD displays

2). Support resolution up to Ultra HD 4Kx2K(3840x2160 @60Hz YUV 4:2:0)
3). Compatible with LPCM 7.1, Dolby TrueHD, Dolby Digital plus,and DTS-HD master audio
4). Support bandwidth up to 10.2 Gbps
5). Support deep color 36 bit
6). Support 3D
7). HDCP Compliant
8). DC 5V 1A power supply
8). Size: 75x68x25.2mm













SPECIFICATIONS





Operating Temperature Range

-5 to +35(+23 to +95)

Operating Humidity Range

5 to 90%RH (No Condensation)

Bandwidth frequency

10.2Gbps

Input ports

1xHDMI(female)

Output ports

2xHDMI outputs(female)

Resolution outputs

up to 4Kx2K(3840x2160@60Hz YUV 4:2:0)

Dimensions(LxWxH)

75x68x25.2mm

Power consumption

1W(MAX)

Transmission Distance

up to 15m over standard HDMI cable/26AWG

Net Weight

128g

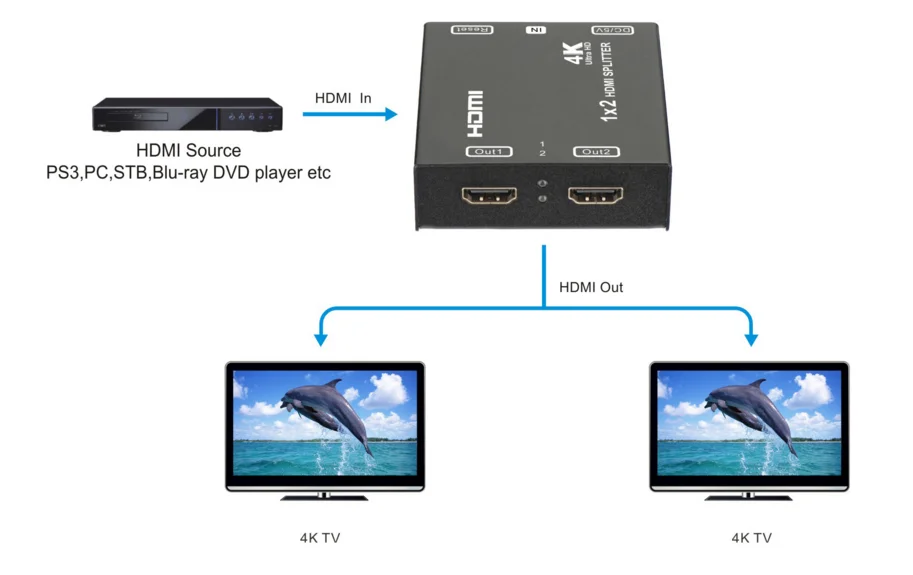

Connection Diagram





Connecting and operating



1) Connect the HDMI input source to input port of HDMI splitter.

2) Connect the HDMI splitter output ports to the displays.

3) Power up splitter, source and displays.




PANEL DESCRIPTIONS



Package Contents

1 x HDMI Splitter

1 x 5V/1A DC Adapter

1 x User Manual
