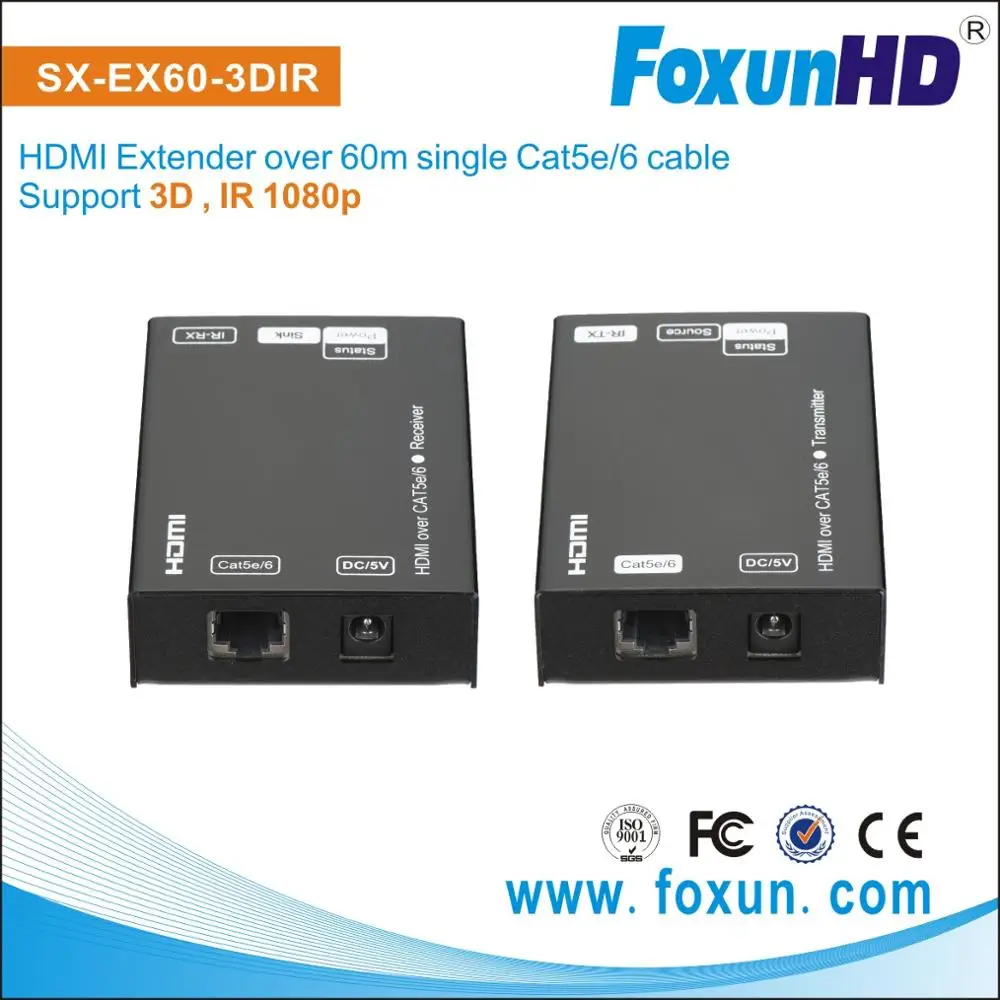

1080P 50m and 60m HDMI Extender over utp cable

FOB Reference Price:Get Latest Price
US $20-40 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Foxun
Model Number:
SX-EX60-3DIR
Type:
HDMI
Application:
Audio & Video
Gender:
Female
Product name:
60m HDMI Extender over single cat5e/6 cable support 3D, IR
Color:
black
Material:
Plastic
power supply:
DC 5V 1A
Size:
L115xW70xH35mm
Input:
1x HDMI; 1x Cat5e/6
Outputs:
1x HDMI; 1x Cat5e/6
QTY/CTN:
20 pcs
Net Weight:
12.5 kg
Gross Weight:
13.5 kg
Packaging & Delivery
Packaging Details
gift box
Port
shenzhen
Lead Time :
within 3 days after payment

60m HDMI Extender over single cat5e/6 cable support 3D, IR

Features:

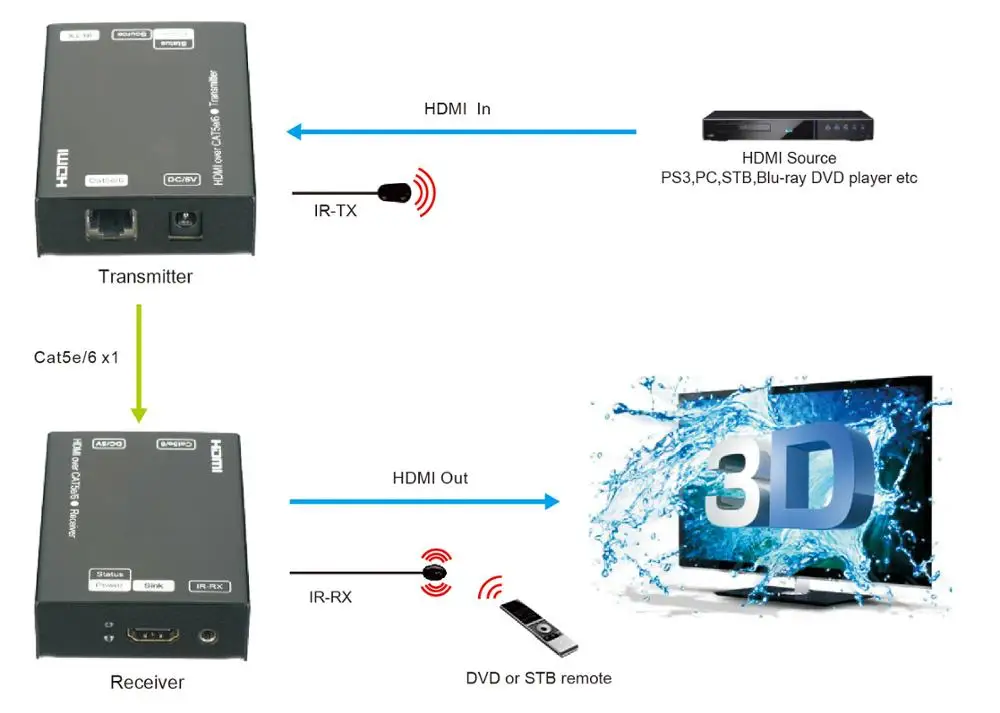

1). Each set includes one transmitter and one receiver
2). Easy installation, no need setting
3). Transmit over 60m single CAT5e/6 without signal loss
4). The CAT5e/6 follows standard of IEEE-568B
5). Support high definition resolution up to Full HD 1080p
6). Support Dolby True-HD, DTS-HD Master audio
7). With IR control to the source
8). Support bandwidth up to 6.75 Gbps
9). Support deep color up to 36 bit
10). Support 3D
11). DC 5V 1A power supply
12). With mounting ears
13). Size: L115xW70xH35mm


SPECIFICATIONS



Operating Temperature Range

-5 to +35(+23 to +95)

Operating Humidity Range

5 to 90%RH (No Condensation)

Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 volts p-p(TTL)

Support Video Format

DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P

3D video format

Video Output

HDMI

Support Audio Format

DTS-HD Master Audio,Dolby true-HD etc.

Transmission Distance

1080P 8-bit 50m(Maximum)

over CAT5E/CAT6 /24AWG/Solid(recommend to use 23AWG Cat6 cable)

Power consumption

3watts(Maximum)

Dimension (L×W×H)

85x62x23mm

IR wavelengh & frequency

Wavelengh:940mm, frequency 38KHz

Net Weight

260g(Pair)



PACKING CONTENTS

1) Main Unit. HDMI Extender

2) Operating Instructions

3) IR TX unit (IR emitter cable)

4) IR RX unit (IR receiver cable)

Power adapter DC 5V 1A x2PCS
