Quick Details

  • Brand Name: foxun
  • Model Number: SX-SPE108
  • Place of Origin: Guangdong, China (Mainland)
  • Type: rj45 repeater
  • Service: OEM/ODM offered
  • Transmission distance: 50m
  • Function supported: 3D
  • Power supply: DC 5V
  • Port: 1 HDMI in 8 Cat4e Out, 1 Local output
  • Resolution: 1080p
  • Warranty: 2 Years
  • Color: Black
  • Certificates: CE.FCC

Packaging & Delivery

Packaging Details rj45 repeater color box, master carton
1 x HDMI Splitter
1 x 5V DC Adapter
1 x User Manu
Delivery Time Shipped in 2 days after payment

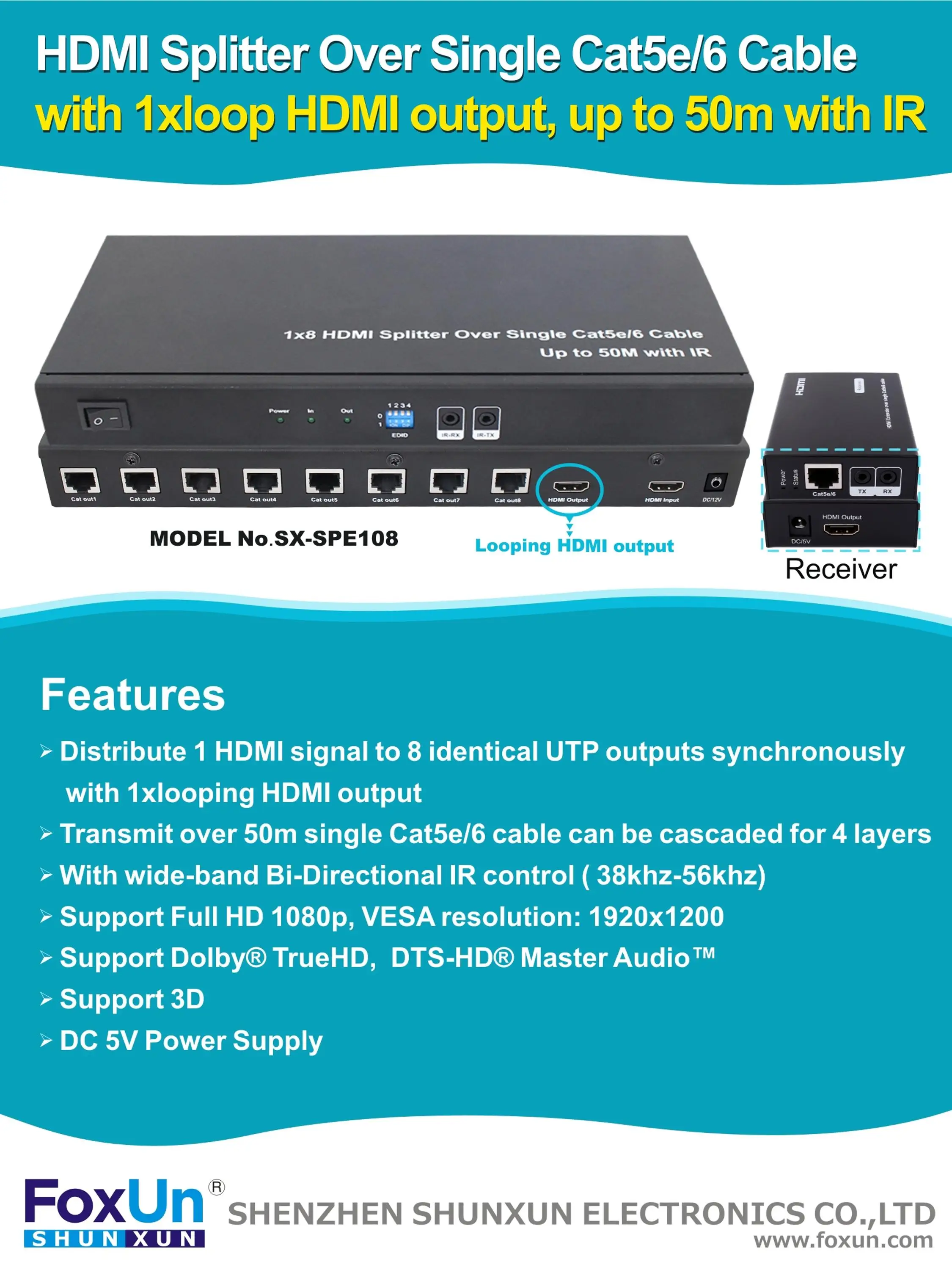

SX-SPE108 1080P HDMI 1X8 HDMI to UPT with RJ45 output Splitter Extender Via 50m Cat5/6/7

Product Description

Skypehebe313
Model NumberSX-SPE108
Typehdmi to UTP



SX-SPE108 1080P HDMI 1X8 HDMI to UPT with RJ45 output Splitter Extender Via 50m Cat5/6/7

rj45 repeater Features

1. Distribute 1 HDMI singal to 8 identical UTP outputs synchronously,

with 1xlooping HDMI output.

2. Transmit over 50m single Cat5e/6 cable.

3. Can be cascaded for 4 layers.

4. With wide-band Bi-Direction IR control (38 ~ 56 kHz).

(IR extension from Sender to Receiver or from Receiver to Sender)

5. Support Full HD 1080p, VESA resolution: 1920x1200.

6. Supports Dolby  TrueHD, DTS-HD  Master Audio.

7. Support 3D.

rj45 repeater Package Contents

1 x HDMI Splitter

1 x 5V DC Adapter

1 x User Manu



rj45 repeater Specification:





Model No.SX-SPE108
Data Transfer Speed Rate6.75Gbps (MAX)
Video FormatVGA:640x480,800x600,1024x768,1080x1024, DTV/HDTV:1080p/4Kx2K 3D Video
Transmission Distance50m 1080p 8-bit Over UTP Cat5e/6 /24AWG/Solid
Support Video Color Formatxv-YCC/deep color 36bit
Support Audio FormatDTS-HD Master, Dolby tru-HD ect...
Power Consumption19.5watts(MAX)
Vertical Frequency Range60Hz
Operating Temperature-5 to 35degree C (+23 to +95degree F)
Operating Humidity Range5 to 90% RH (No Condensation)
Input Video Signal0.5- 1.0 Volt P-P
Input DDC Signal5 volts p-p (TTL)
Dimension(LxWxH)268*152*43mm
N.W830g
Gift Box MeasurementL40.5xW15.5xH6.5cn





rj45 repeater Application diagram:





rj45 repeater Panel Description:





rj45 repeater Connecting and operating

1) Connect the HDMI input source into HDMI splitter (by HDMI cable).

2) Connect by single cat5e/6 cable between the Cat5e/6 outputs of HDMI splitter and Cat5e/6 input of receiver (The cable termination must follow the standard of EIA/TIA

568B).

3) Connect the HDMI display (such as HD-LCD/HD-DLP) into the HDMI output of

receiver.

4) Insert the DC 5V power supply into HDMI splitter and receiver.
