SX-SPE102 new 1 to 2 HDMI Splitter with rj45 port Over Single Cat5e/6 Cable with IR

FOB Reference Price:Get Latest Price
US $1-80 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
FOXUN, Foxun
Model Number:
SX-SPE102
Channels:
5.1
Player Type:
Blu-Ray Player
Special Feature:
Mini System
Place of Origin:
Guangdong, China (Mainland)
Video Amplifier Bandwidth:
140MHz
Data transfer speed rate:
6.75Gbps(Maximum)
Vertical Frequency range:
60Hz
Transmission Distance:
1080P 8-bit 50m
Power consumption:
6W(Max)
Input Video Signal:
0.5-1.0 Volts P-P
Input DDC Signal:
5 volts p-p(TTL)
Input port:
1xHDMI
Output ports:
2xCat5e/6, 1xHDMI
SupplyAbility
SupplyAbility:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1)1 x HDMI Splitter
2)1 x 5V DC Adapter
3)1 x User Manual
Port
SHENZHEN
Lead Time :
1-7days

1x2 HDMI Splitter Over Single Cat5e/6 Cable Up to 50M with IR

MODEL NO.:SX-SPE102

CONTACT:Kara. Foxun

Skype:Kara Zhan

Operating Instructions

SPE102 1.jpg

Features

1). Distribute 1 HDMI signal to 2 identical UTP outputs synchronously, with 1xlooping HDMI output
2). Transmit over 50m single Cat5e/6 cable
3). Can be cascaded for 4 layers
4). With wide-band Bi-Direction IR control (38 ~ 56 kHz)
(IR extension from Sender to Receiver or from Receiver to Sender)
5). Support Full HD 1080p, VESA resolution: 1920x1200
6). Supports Dolby TrueHD, DTS-HD Master Audio
7). Support 3D

Specifications

Operating Temperature Range

-5 to +35(+23 to +95)

Operating Humidity Range

5 to 90%RH (No Condensation)

Video Amplifier Bandwidth

140MHz

Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 volts p-p(TTL)

Data transfer speed rate

6.75Gbps(Maximum)

Input port

1xHDMI

Output ports

2xCat5e/6, 1xHDMI

Video Format Supported

DTV/HDTV: 720P/1080i/1080P

VESA resolution:1920x1200

3D video support

Vertical Frequency range

60Hz

Support Audio Format

DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc

Transmission Distance

1080P 8-bit 50m

Over single cat5e or cat6 cable/24AWG/Solid

Power consumption

6W(Max)

Dimension (L×W×H)

L149xW79xH28mm

Net Weight

317.7g

Note: 1)The transmission distance is Max 40m under 1920x1200 resolution.

     2)The distance is 40m under 5.1CH or 7.1CH.

     3)Under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.



Packing Contents

1)1 x HDMI Splitter

2)1 x 5V DC Adapter

3)1 x User Manual

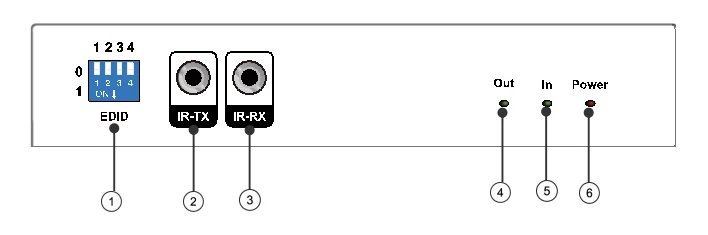

Panel descriptions

                              front panel


1. DIP switch for EDID setting            2. IR-TX port

3. IR-RX port                           4. Indicator of HDMI output

5. Indicator of HDMI input                6. Power input indicator

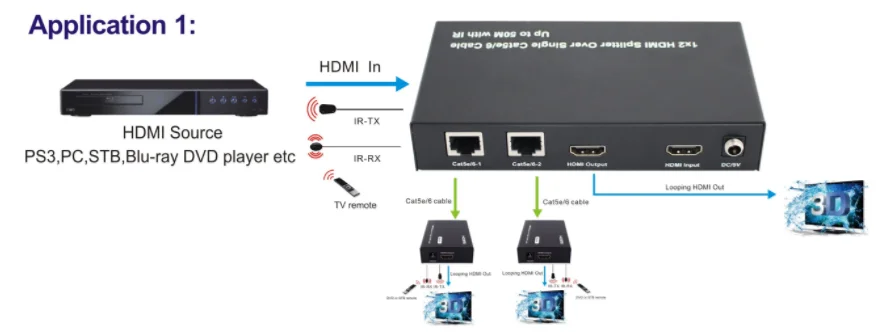

Writing diagram
