SX-SP07S Mini 1 in 8 out HDMI2.0 1x8 HDMI Splitter, HDCP2.2 Supports 3D, 4Kx2K@60Hz(YUV 4:4:4), 18G, HDR, EDID

FOB Reference Price:Get Latest Price
US $1-100 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
FOXUN, Foxun
Model Number:
SX-SP07S
Channels:
5.1
Player Type:
Blu-Ray Player
Special Feature:
Mini System
Place of Origin:
Guangdong, China (Mainland)
Resolution outputs:
up to 4Kx2K(3840x2160@60Hz YUV 4:4:4)
Bandwidth frequency:
18Gbps
HDCP:
HDCP2.2/1.4 Compliant
Transmission Distance:
15m(Maximum)over standard HDMI cable/26AWG
Power consumption:
5W(MAX)
Size:
Slim
power supply:
1 x 5V/1A DC
Support:
3D,HDR ,36 bit Deep Color
EDID:
Supports four kinds of EDID handling abilities
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 x HDMI Splitter
1 x 5V/1A DC Adapter
1 x User Manual
Port
Shenzhen
Lead Time :
shipping 3-5 days after payment

Best Buy 1x8 HDMI Splitter, HDCP2.2, Supports 3D, 4Kx2K@60Hz(YUV 4:4:4), 18G, HDR, EDID

Product Description

Model number : SX-SP07S

Key words : 4k hdcp splitter

Skype: Kara Zhan

Operating Instructions

Features

1). Simultaneously displays an UItra Hi-Def source on up to eight UItra HD displays.

2). Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4 ).

3). Supports four kinds of EDID handling abilities.

4). Supports HDCP2.2/1.4 Compliant.

5). Supports 36 bit Deep Color.

6). Supports LPCM 7.1, Dolby  TrueHD, Dolby digital  Plus, and DTS-HD  Master Audio.

7). Support 3D.

8). Bandwidth 18G.

9). Support HDR.

10). Support online firmware upgrade via Micro USB Port.

Specifications

Operating Temperature Range

-5 to +40(+23 to +104)

Operating Humidity Range

5 to 90%RH (No Condensation)

Bandwidth frequency

18Gbps

HDCP

HDCP2.2

Input ports

1xHDMI(female)

Output ports

8xHDMI outputs(female)

Resolution outputs

up to 4Kx2K(3840x2160@60Hz YUV 4:4:4)

Dimensions(LxWxH)

247.2x110x17mm

Power consumption

5W(MAX)

Transmission Distance

15m(Maximum)over standard HDMI cable/26AWG

Net Weight

610g

Package Contents

1 x HDMI Splitter

1 x 5V/1A DC Adapter

1 x User Manual

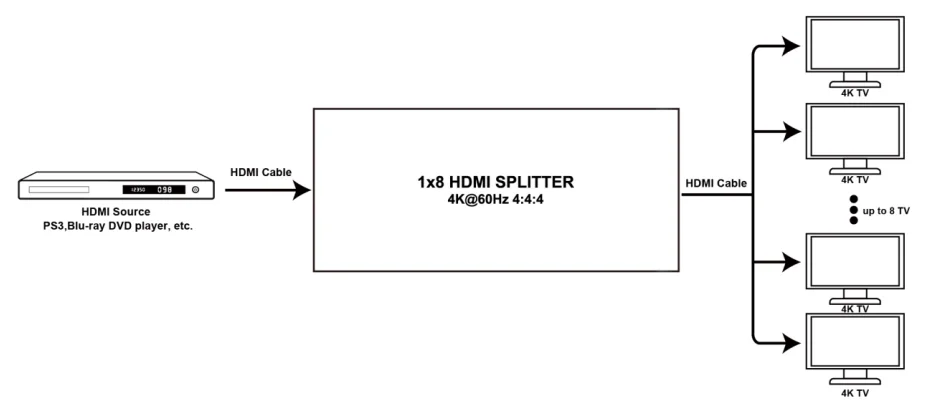

Connection Diagram

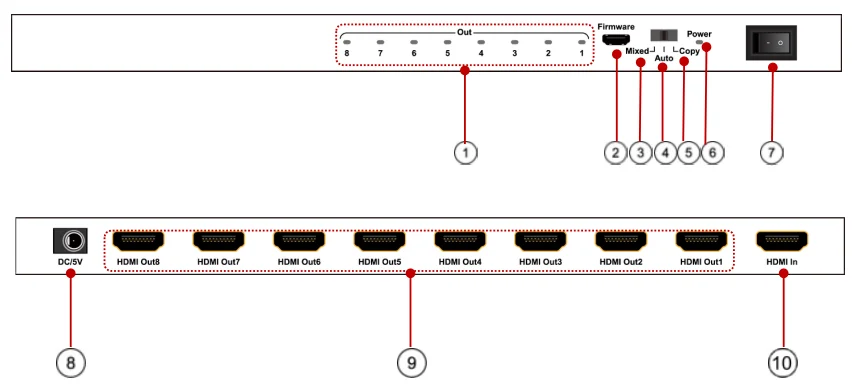

PANEL DESCRIPTIONS


Certifications

CE FCC.jpg

Company Minestone

Company Milestone.jpg

Packing and Shipping


Workshop Overview


Exhibition Shows
