Good Quality HDMI 1080P@60HZ Matrix Switch Support 2X2 Video Wall

FOB Reference Price:Get Latest Price
US $100-400 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
FOXUN
Model Number:
SMX44
Place of Origin:
Guangdong, China (Mainland)
Product name:
HDMI Matrix
Input:
4xHDMI Input
Output:
4x HDMI Output
Color:
Black
Function:
the four outputs can be turned off independently.
Feature:
Each port support both HDMI and DVI inputs.
Certifications:
CE FCC
Resolution:
1080p@60Hz@36 b/pixels, 1080i, 720p and other standard video formats.
Type:
Seamless Switch HDMI Matrix
Support:
Support 2x2 video wall mode.
SupplyAbility
SupplyAbility:
80000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Box Dimensions :495mm[L] x 310mm [W] x 80mm[H]
Carton Dimensions :505mm[L] x 425mm [W] x 330mm[H]
QTY/CTN : 5 pcs
Net Weight :19.5 kg
Gross Weight : 20 kg
Port
Shenzhen
Lead Time :
Shipped in 3 days after payment
Product Description

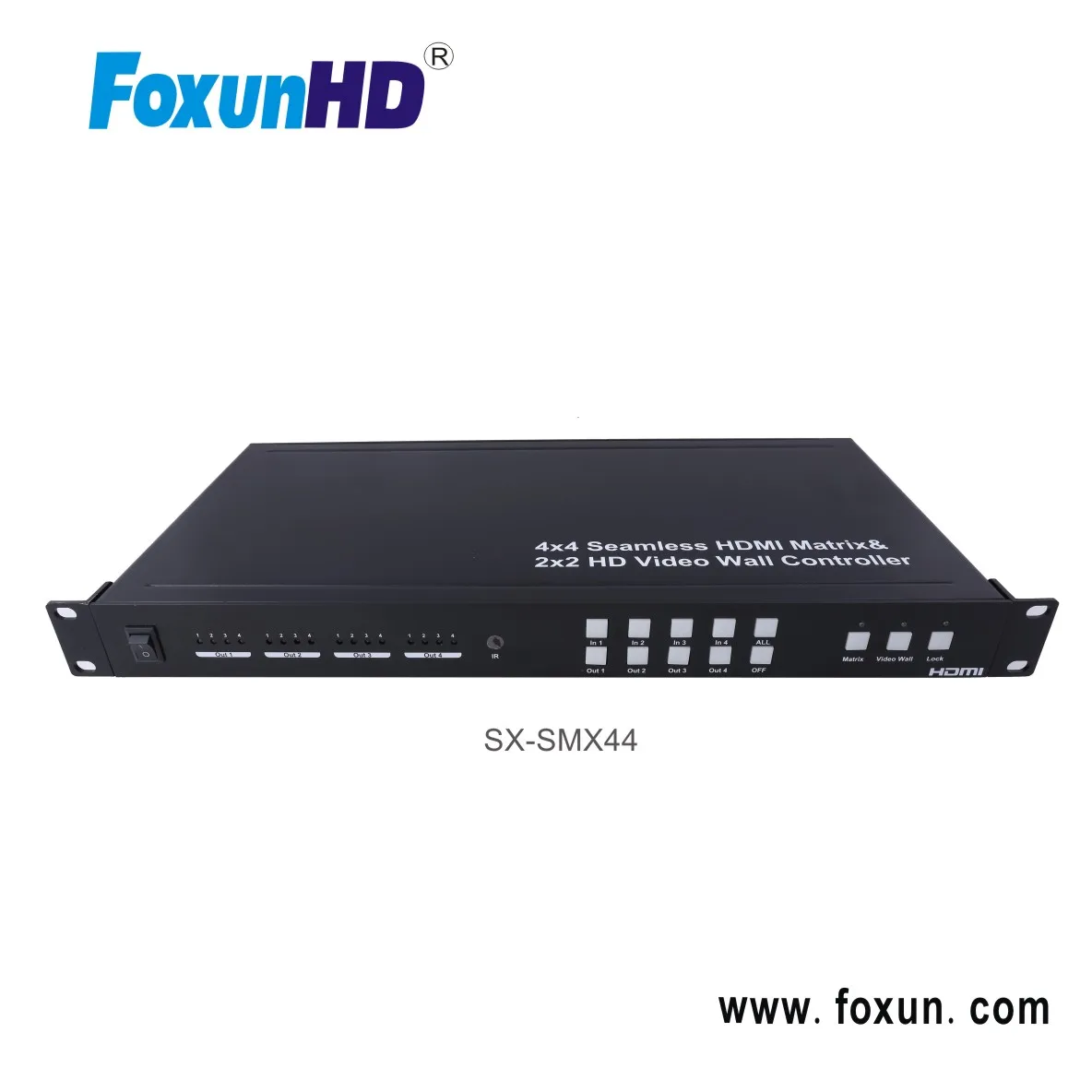

Good Quality HDMI 1080P@60HZ Matrix Switch Support 2X2 Video Wall

Model:SMX44



Features:

1). Any one of the 4 sources to any one of the 4 displays.
2). Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 1 second.
3). Support 2x2 video wall mode.
4). Any one of the four outputs can be turned off independently.
5). Each port support both HDMI and DVI inputs.
6). Support high definiton resolutions, including: 1080p@60Hz@36 b/pixels, 1080i, 720p and other standard video formats.
7). With panel button, Remote Control, RS232 Control, IP Control to select the source.
8). 1U rack design ,easy installment.
9). DC 12V 3A power supply.
10).Unit size:L438XW220XH44mm.



Operating Instructions

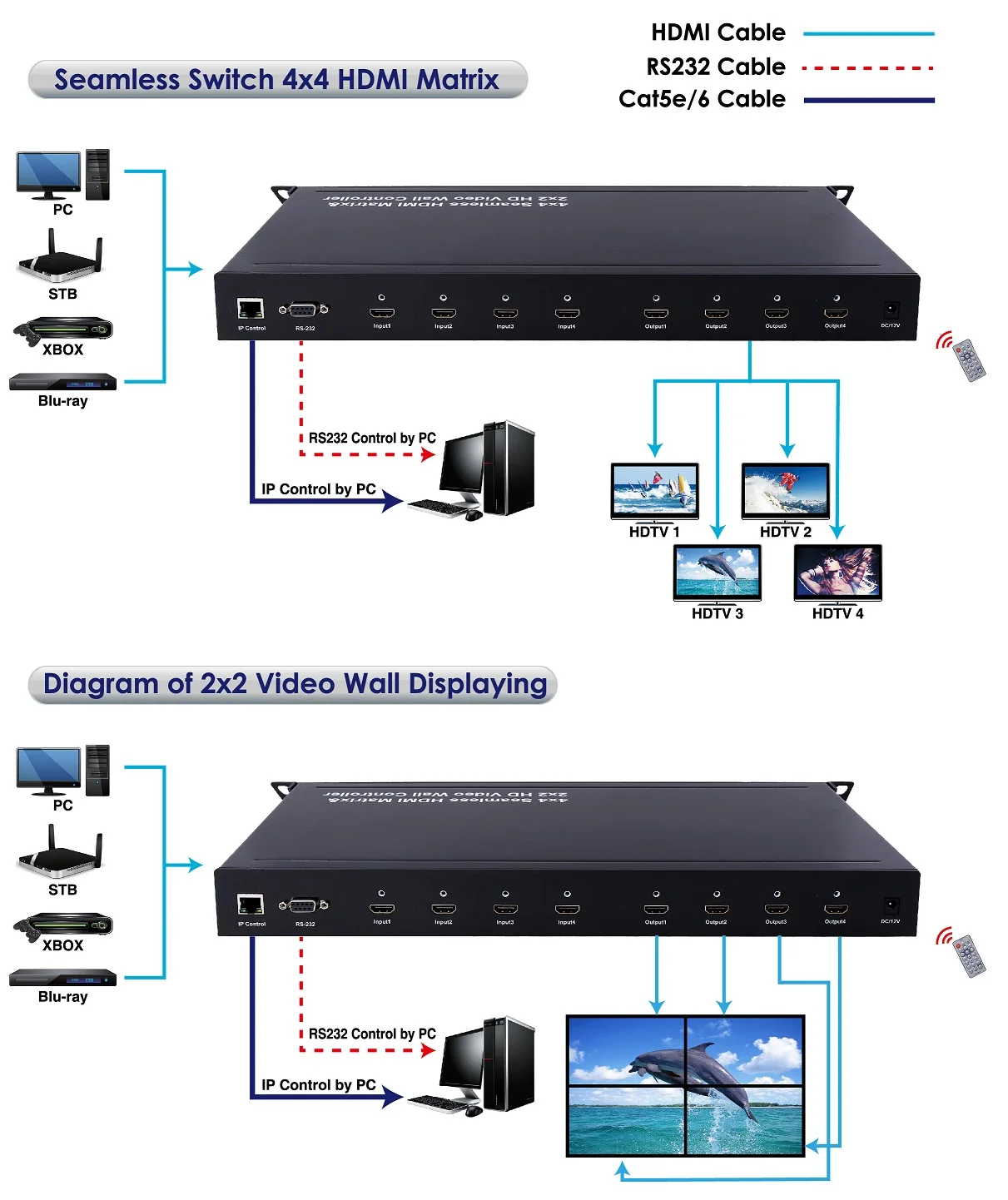

Connection Diagram

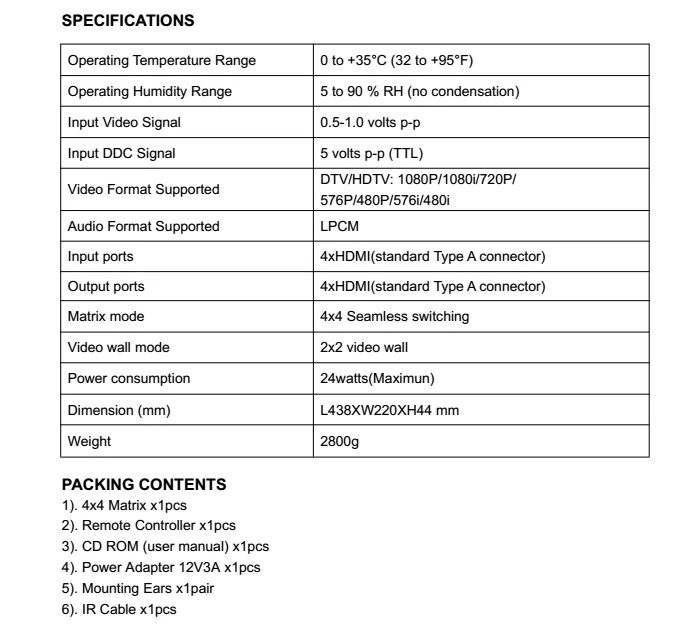

SPECIFICATIONS

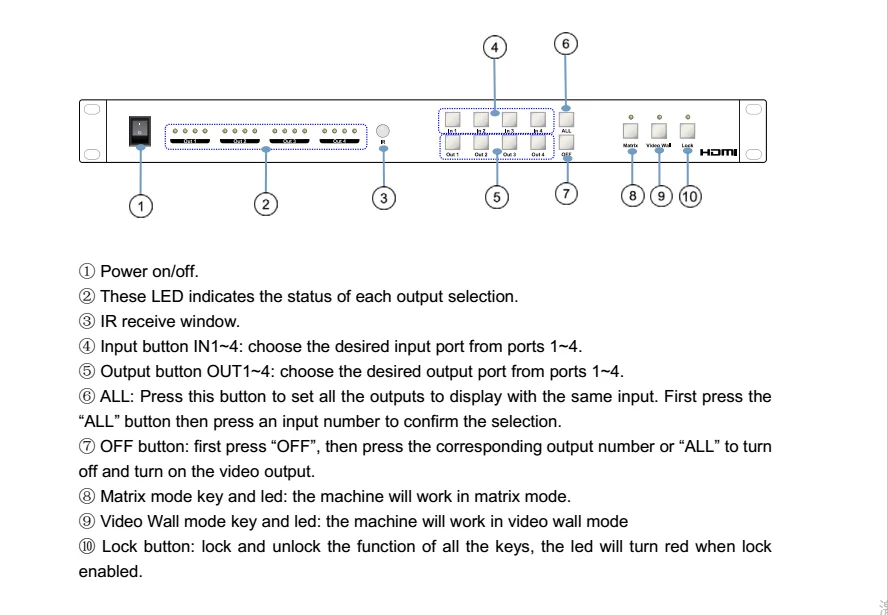

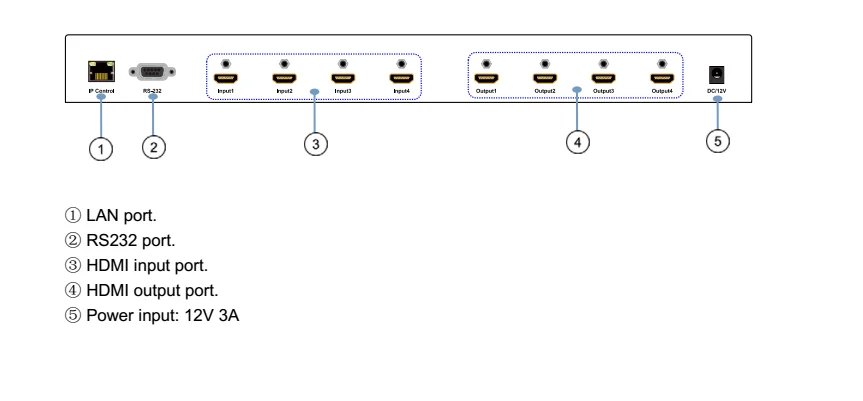

PANEL DESCRIPTION



Packaging & Shipping
