New 70m HDBaseT Extender with HDCP2.2, POC, 4K, CEC, RS232, Bi-directional IR,Ultra HD 4Kx2K Extender

FOB Reference Price:Get Latest Price
US $40-90 / Pieces | 2 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
FOXUN
Model Number:
EX33
Place of Origin:
Guangdong, China (Mainland)
Product name:
HDMI Extender
Input:
Sender: HDMIx1, Receiver: Cat5e/6x1
Output:
Sender: Cat5e/6x1, Receiver: HDMIx1
Color:
Black
Function:
Transmit up to 70 meters under 1080p and 40m under 4k
Feature:
POC( Receiver powered by Transmitter)
Type:
HDMI Extender
Certifications:
CE FCC ROHS
Resolution:
Ultra HD 4Kx2K
Support:
3D
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Box Dimensions:315mm[L] x 250mm [W] x 58mm[H]
Carton Dimensions:330mm[L] x 295mm [W] x 27mm[H]
QTY/CTN:5 pcs
Net Weight:5 kg
Gross Weight: 6 kg
Port
Shenzhen
Lead Time :
Shipped in 3 days after payment
Product Description

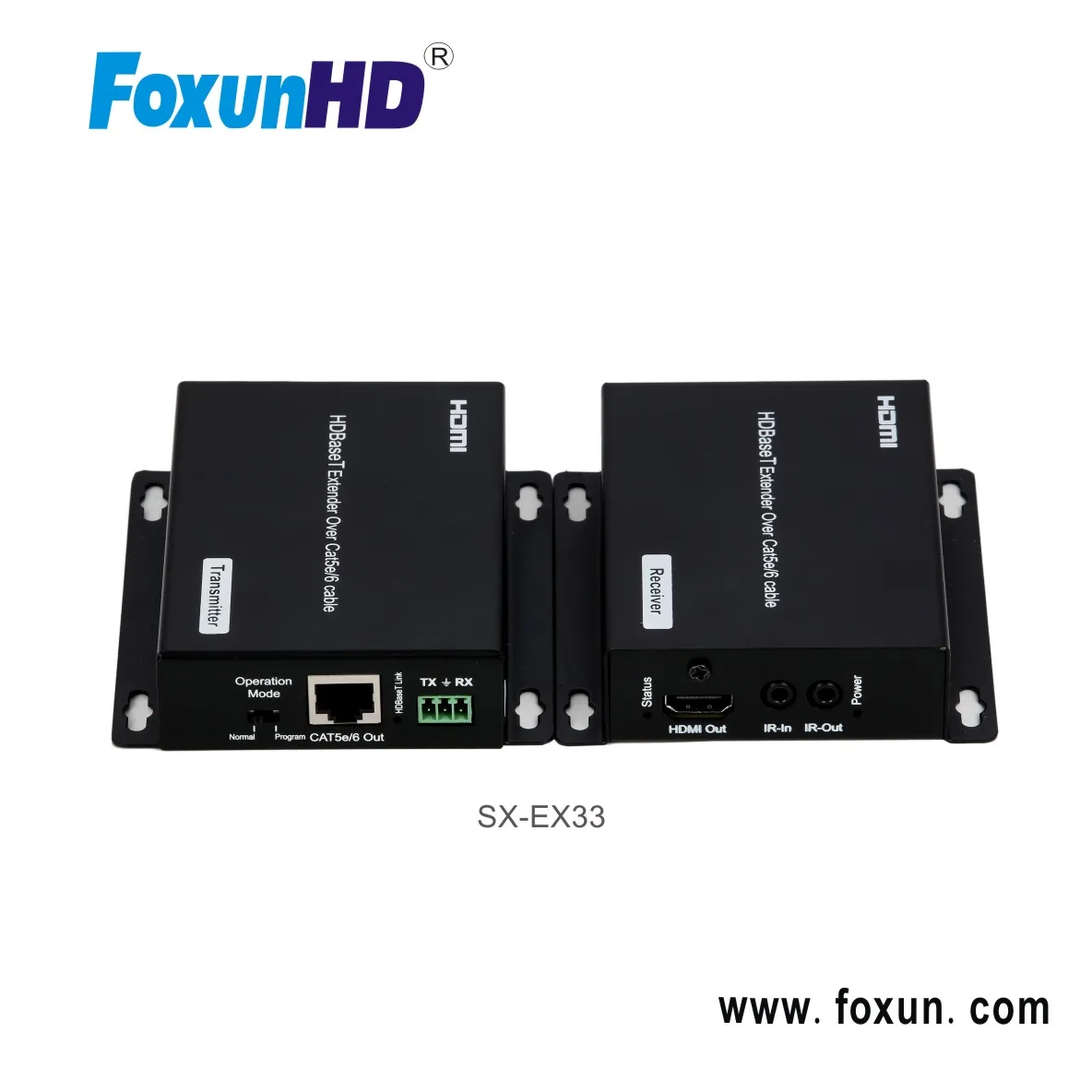

New 70m HDBaseT Extender with HDCP2.2, POC, 4K, CEC, RS232, Bi-directional IR,Ultra HD 4Kx2K Extender

Model:SX-EX33



Features:

1). Incorporates HDBaseT Technology
2). Support resolution up to Ultra HD 4Kx2K
3). Transmission distance reaches up to 70 meters under the video format of 1080P and 4K up to 40 meters
4). POC( Receiver powered by Transmitter)
5). Support 3D
6). HDCP2.2/1.4 compliant
7). CEC pass through
8). Support wide-band Bi-directional IR (38KHZ to 56KHZ)
9). IR extension from transmitter to receiver or from receiver to transmitter
10). Phoenix RS232 Port for firmware update or RS232 control signal transmission

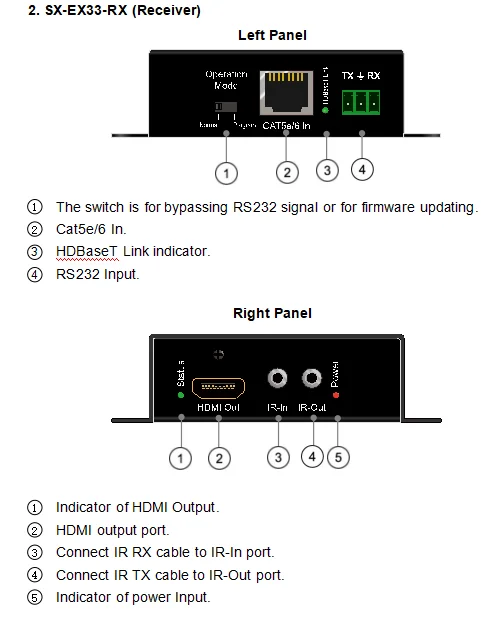

Operating Instructions






Connection Diagram


SPECIFICATIONS

Operating Temperature Range

-5 to +35°C (-41 to +95 °F)

Operating Humidity Range

5 to 90 % RH (no condensation)

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Video Format Supported

DTV/HDTV;

4K/1080P/1080i/720P/576P/480P/576i/480i

Output Video

HDMI 2.0+HDCP1.4/2.2

Output Audio

Support DTS-HD, Dolby-HD

Maximum Transmission Distance

70 meters for 1080P, 40 meters for 4K

Power Supply

12V2A

Poc

Power from TX to RX over Cat5/6 cable

Power Consumption

2.5Watts (SX-EX33-TX)

5Watts (SX-EX33-RX)

Dimensions

105mmH×71mmW×25mmD

Mass (Main unit)

0.7Kg / 1.54lb (Pairs)
