SX-EX33 70m HDBaseT Extender with HDCP2.2, POC, 4K, CEC, RS232, Bi-directional IR

FOB Reference Price:Get Latest Price
$1.00 - $80.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
FOXUN
Model Number:
SX-EX33
Channels:
5.1
Player Type:
Blu-Ray Player
Special Feature:
Mini System
Place of Origin:
Guangdong, China (Mainland)
Type:
HDCP2.2 &HDCP1.4 compliant
resolution:
4k @60hz YUV 4:2:0
Operating Temperature Range:
-5 to +35°C (-41 to +95 °F)
Operating Humidity Range:
5 to 90 % RH (no condensation)
Transmission distance:
up to 70 meters under the video format of 1080P and 4K up to 40 meters
Input Video Signal:
0.5-1.0 volts p-p
Video Format Supported:
DTV/HDTV
power supply:
12V2A
Color:
Black
Output Video:
HDMI2.0+HDCP1.4/2.2
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1)Main unit .
2)Operating instructions.
3)12VDC power supply.(only for TX, RX can be powered from TX)
4)2xIR TX unit. (IR emitter cable, 1 pcs for TX, 1 pcs for RX)
5)2xIR RX unit. (IR receiver cable, 1 pcs for TX, 1pcs or for RX)
6)2 Phoenix plugs for RS232 cable termination
Port
Shenzhen

HDBaseT Extender Over Single Cat5e/6 cable

MODEL NO.:SX-EX33

Operating Instructions



FEATURES

1). Incorporates HDBaseT Technology
2). Support resolution up to Ultra HD 4Kx2K
3). Transmission distance reaches up to 70 meters under the video format of 1080P and 4K up to 40 meters
4). POC( Receiver powered by Transmitter)
5). Support 3D
6). HDCP2.2/1.4 compliant
7). CEC pass through
8). Support wide-band Bi-directional IR (38KHZ to 56KHZ)
9). IR extension from transmitter to receiver or from receiver to transmitter
10). Phoenix RS232 Port for firmware update or RS232 control signal transmission
Package Contents
1)Main unit .
2)Operating instructions.
3)12VDC power supply.(only for TX, RX can be powered from TX)
4)2xIR TX unit. (IR emitter cable, 1 pcs for TX, 1 pcs for RX)
5)2xIR RX unit. (IR receiver cable, 1 pcs for TX, 1pcs or for RX)
6)2 Phoenix plugs for RS232 cable termination
Specifications
Operating Temperature Range -5 to +35°C (-41 to +95 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported DTV/HDTV;
4K/1080P/1080i/720P/576P/480P/576i/480i
Output VideoHDMI2.0+HDCP1.4/2.2
Output AudioSupport DTS-HD,Dolby-HD
Maximum Transmission Distance70 meters for 1080P, 40 meters for 4K
power supply12V2A
Poc Power from TX to RX over Cat5/6 Cable
Power Consumption

2.5Watts(TX)

5Watts(RX)

Dimensions105mmHx71mmWx25mmD
Mass(Main unit)0.7Kg/1.54lb(Pairs)

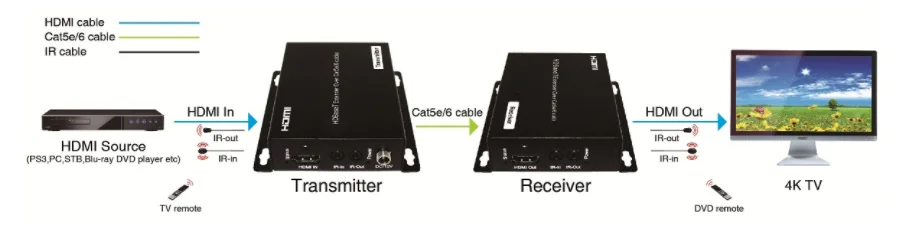

Connection Diagram

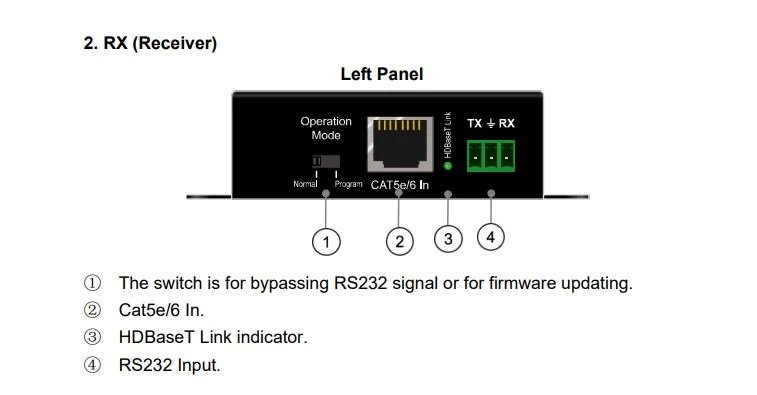

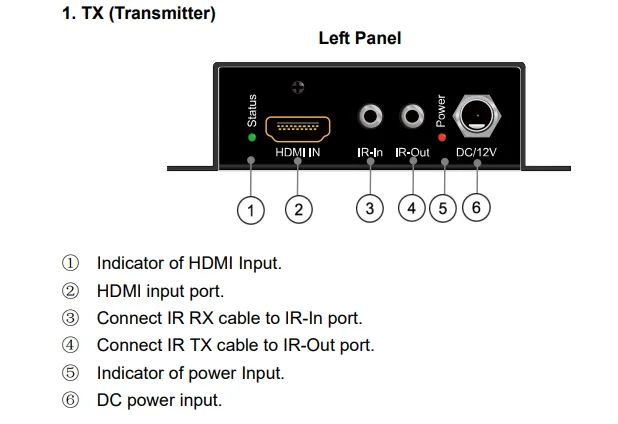

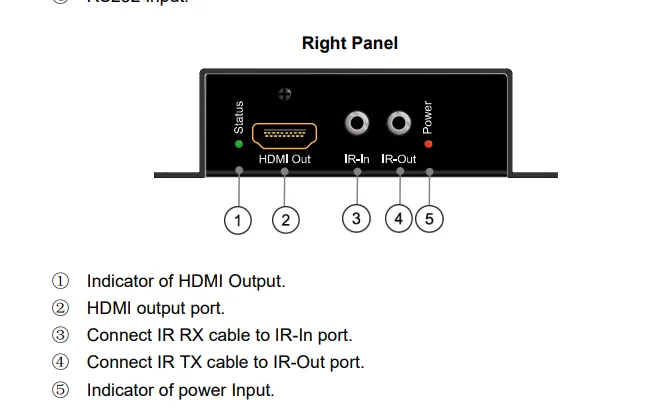

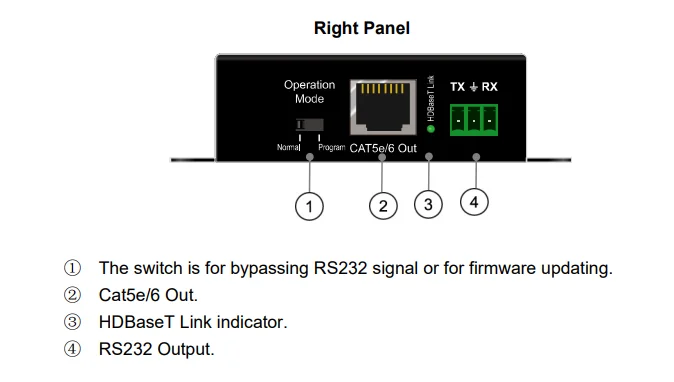

Panel Descriptions
