TCP/IP control hdmi 2.0 matrix HDCP 2.2 in and out Matrix Switcher for HDMI remote control switch

FOB Reference Price:Get Latest Price
US $600-800 / Pieces | 1 Piece/Pieces remote control switch (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
FOXUN
Model Number:
SX-MX11B
Place of Origin:
Guangdong, China (Mainland)
Type:
remote control switch
Support:
HDCP 2.2 + HDMI 2.0 version
HDMI 2.0:
4Kx2k@60Hz,YUV444
HDCP:
HDCP 2.2
switching modes:
Panel buttons, Local IR, IR extension
Control:
RS232 Control, IR
Video Format:
4K@60Hz/4k@30Hz
Transmission Distance:
<15m
Color:
Black
Certifications:
CE, FCC
Supply Ability
Supply Ability:
800000 Piece/Pieces per Month remote control switch
Packaging & Delivery
Packaging Details
remote control switch:
1). 1x HDMI Matrix
2). 1x 12V DC power supply
3). 1x Remote control
4). 8x IR TX cable
5). 8x Wide Band IR RX Cable (38khz-56khz)
6). 1x 38khz IR Ext RX Cable
7). 1x mounting kit
8). 1x CD for control software & user manual
Port
SHENZHEN
Lead Time :
Shipped in 2 days after payment

8 IN 8 OUT hdmi 2.0 matrix HDCP 2.2 in and out Matrix Switcher for HDMI remote control switch



8*8 hdmi 2.0 matrix HDCP 2.2 in and out Matrix Switcher for HDMI remote control switch







remote control switch Features:

1. 8 HDMI inputs (HDMI2.0 HDCP2.2), 8 HDMI output, arbitrary signal can switch to any output all the way all the way.
2. 18 GBPS data transmission bandwidth
3. Support RS232, IP and Telnet protocol control
4. Support EDID management functions (copy, write EDID to input port)
5. The output resolution support: 480 p, 576 p, 576 p / 50 hz, 720 p / 60 hz, 1080 p / 24 p / 50 hz and 1080 hz, 1080 p / 60 hz, 4 kx2k / 24 hz / 30 hz, 4 kx2k / 60 hz @ YUV4:2-0,4 k2k / 60 hz @ YUV4:4:4
6. Support HDCP2.2 input, the output HDCP2.2
7. Support LPCM, dolby, DTS 5.1, 7.1 channel
8. Support the IR matrix function
9. Support local infrared infrared control and extension
10. The external power supply (lock) socket, power rating to be determined
11. Automatic standby function

remote control switch Specification:

 Brand

 FOXUN

 Model No.

SX-MX09

 Material

Metal

Color

Black

Interface

HDMI

Application

Route 8 HDMI Input to 8 HDMI Output

 Operating Temperature Range

 -5 to +35 Degree Celsius ( +23 to +95 Degree Fahrenheit )

 Operating Humidity Range

 5 to 90%RH ( No Condensation )

 Input Video Signal

0.5 -1.0 Volts P-P

Input DDC Signal

5 Volts P-P ( TTL )

Signaling Rate

3.0Gbit/s

Video Format

4K@60Hz/4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i

 Video Output

HDMI 2.0+ HDCP 2.2

Video Color Format

xv-YCC/deep Color 36 bit

Audio Format

DTS-HD Master Audio, Dolby True-HD etc.

 Transmission Distance

 <15m ( If need, HDMI Extender is optional )

 Power Consumption

15 Watts ( Max. )

Dimension ( L*W*H )

440*256*42mm

Net Weight

2.4kg

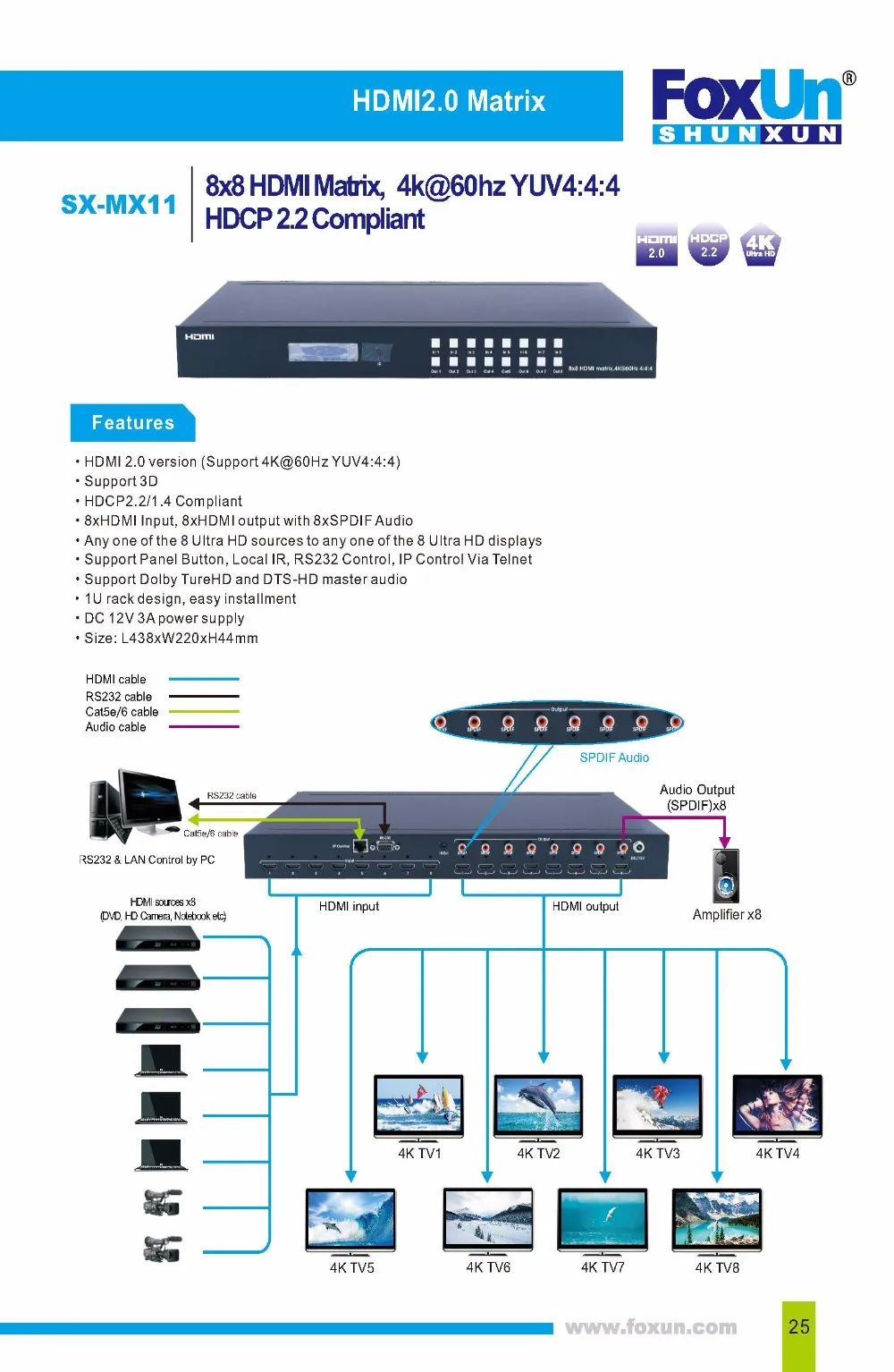

remote control switch Diagram

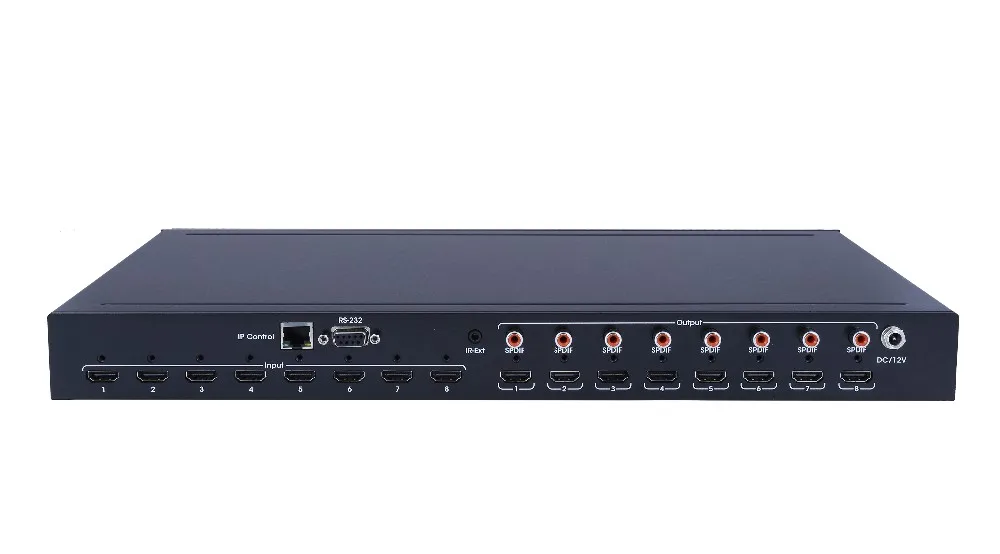

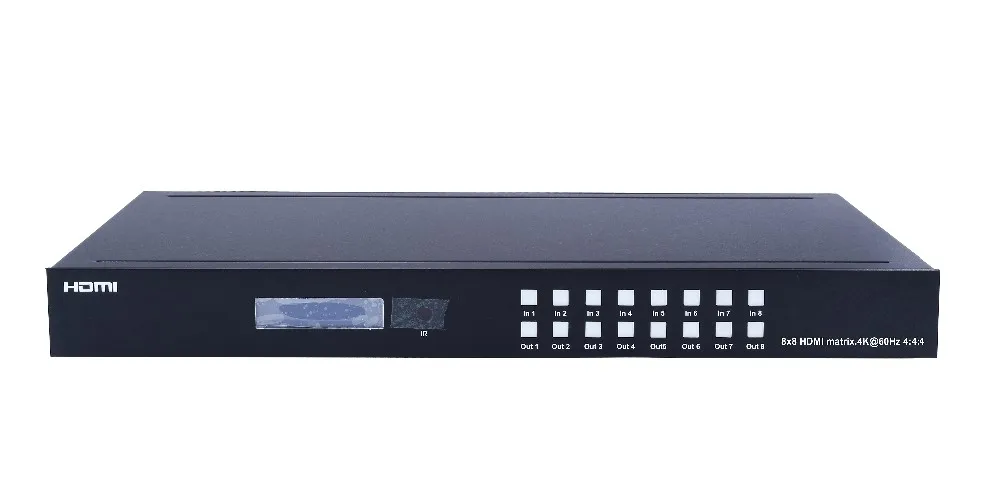

remote control switch pictures:



 4k hdmi matrix.JPGFV0A0362.JPGhdcp2.jpg

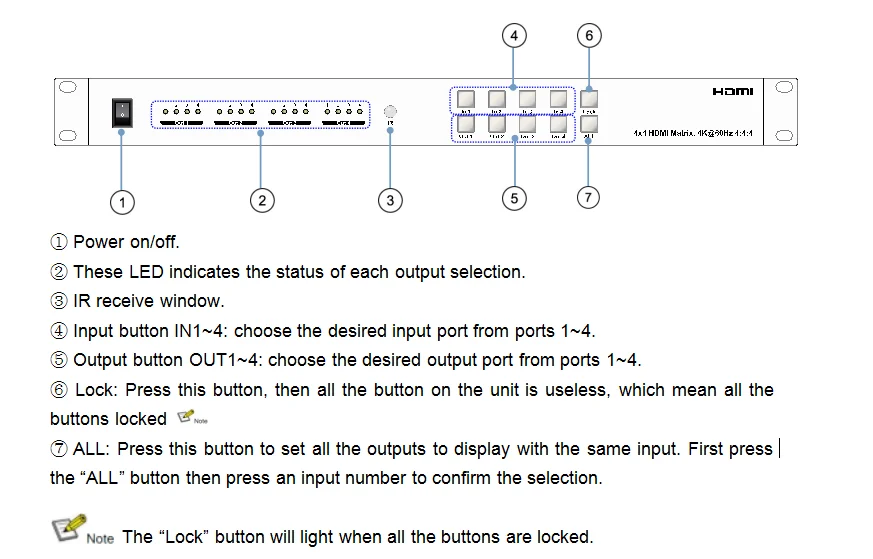

remote control switch front panel:

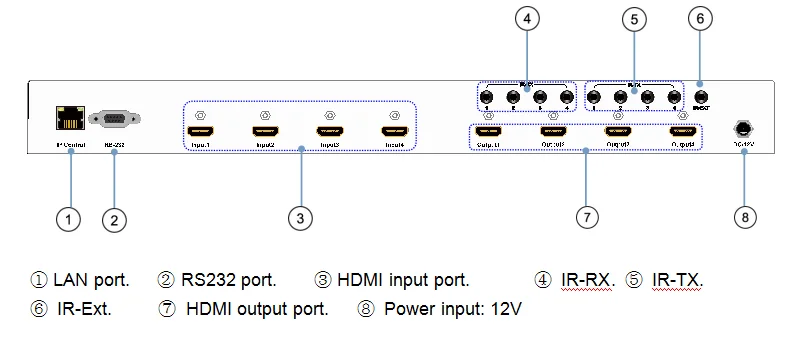

remote control switch rear panel:

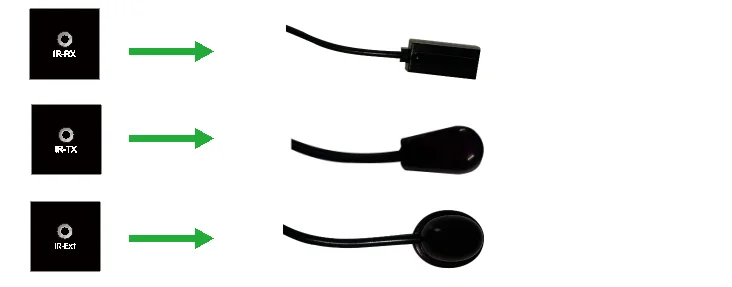

remote control switch IR Description:



remote control switch Remote Control Description:





Packaging & Shipping

1). 1x HDMI Matrix

2). 1x 12V DC power supply

3). 1x Remote control

4). 8x IR TX cable

5). 8x Wide Band IR RX Cable (38khz-56khz)

6). 1x 38khz IR Ext RX Cable

7). 1x mounting kit

8). 1x CD for control software & user manual
