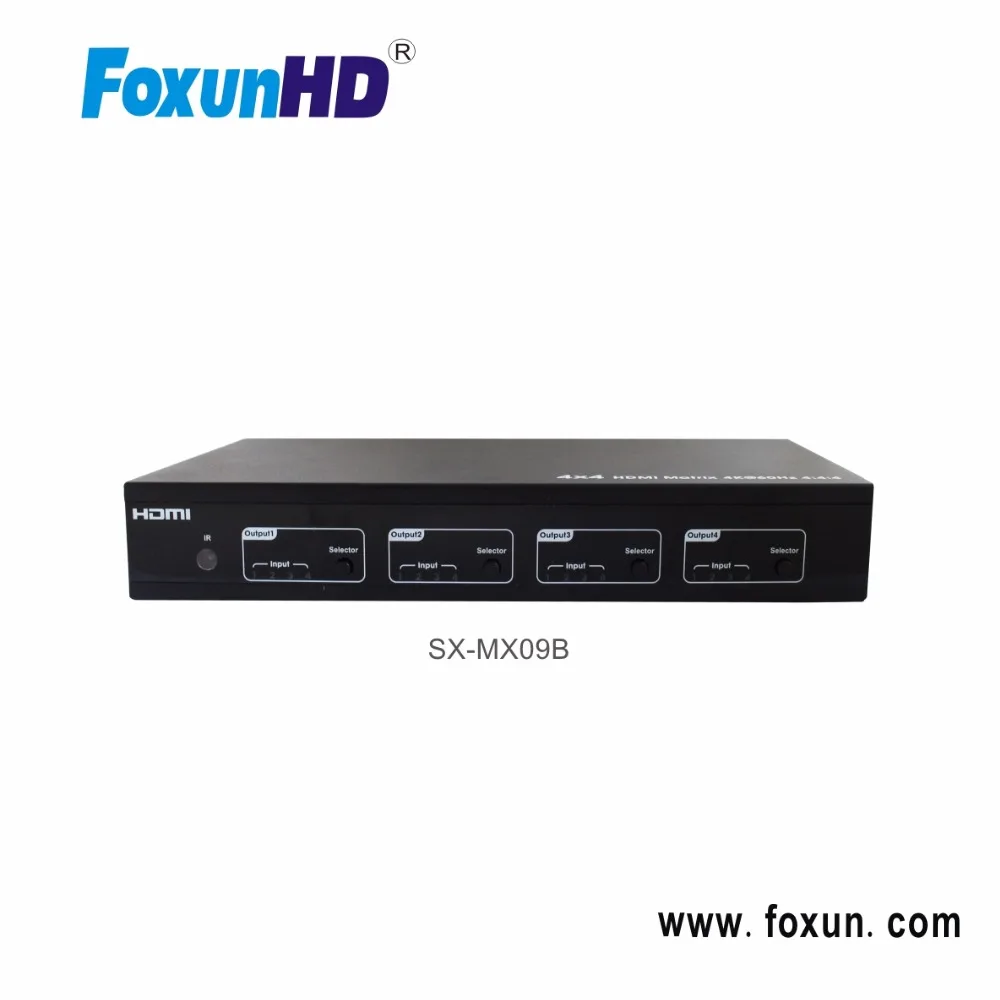

4 in 4 out HDMI2.0 Matrix switcher Support 4K@60hz YUV4:4:4, 18Gbps, HDR10

FOB Reference Price:Get Latest Price
US $100-140 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FOXUN
Model Number:
SX-MX09B
Product Name:
HDMI Matrix
Model:
SX-MX09B
Color:
Black
Material:
Metal
Certificate:
FCC CE
suport:
hdcp2.2 hdcp1.4
Bandwidth:
18G
resolution:
4K@60Hz YUV4:4:4
Type:
4 by 4 matrix
HDCP:
2.2
Packaging & Delivery
Packaging Details
gift box
Port
SHENZHEN
Lead Time :
within 1-7 days after payment

New 4x4 HDMI2.0 Matrix switcher Support 4K@60hz YUV4:4:4, 18Gbps, HDR10



MODLE: SX-MX09B

Key Word: HDMI2.0 Matrix



Mian features:

1) HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2) Support 3D

3) Bandwidth upto 18Gbps

4) HDCP2.2 input ,HDCP2.2 output

5) HDCP1.4 input, HDCP1.4 output

6) Support HDR10

7) 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio

8) Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays

9) Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI
Control
10) Support Dolby True HD and DTS-HD master audio




Operating Temperature23°F to 113°F (-5°C to 45°C)
Storage Temperature-4°F to 140°F (-20°C to 60°C)
Resolution480p@60hz,576P@50hz,720P@60hz,
1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,
4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4
HDCP CompliantHDCP2.2 and HDCP1.4
Output VideoHDMI2.0 and HDMI 1.4
Audio Format SupportedPCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos
RS-232 serial port3PIN terminal block connectors
Ethernet port (IP control)RJ45, female
IR Ext port1x3.5mm stereo jack
USB portMicro 5P female
Bandwidth18 Gbps
Default IP192.168.1.168
Rack-MountableRack ears included
Dimensions(WxHxD)L216XW105XH34mm
Net Weight0.72kg
Power consumption13W(Max)



Wiring Diagram:
