1x2 HDMI 18G 4K@60hz HDMI splitter 2.0 VERSION

FOB Reference Price:Get Latest Price
US $10-30 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Brand Name:
Foxun/OEM
Model Number:
SX-SP05S
Place of Origin:
Guangdong, China (Mainland)
Color:
Black
Type:
1*2 splitter
Input:
1x HDMI Type A, Female
Output:
2x HDMI Type A, Female
Data Transfer Speed Rate:
6.75Gbps (MAX)
Support:
4k@60hz YUV 4:4:4
Pass-through:
3D, & HDCP
Resolutions:
Up to 4k2k
Power Consumption:
10watts(MAX)
Dimension(LxWxH):
93.6x61x15mm
Supply Ability
Supply Ability:
1000000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Exporting Packing
Port
Shen zhen
Lead Time :
3-15 working days

1x2  one in two out 18G 4K@60hz YUV444 HDMI 2.0 HDMI splitter amplifer



Product Description


  1*2 splitter FEATURES:



Distributes 1 HDMI source to 4 HDMI Displays simultaneously.

Supports all the mandatory and several optional 3D formats

Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD

Supports High Definition Resolutions : 1080p @ 60HZ, 720p/1080i @ 120Hz.

Supports Digital Audio Format, such as High Definition Audio support: Dolby TrueHD, and DTS-HD Master Audio.

DC 5V Power.

Compliant HDCP



1*2 splitter SPECIFICATIONS:



Operating Temperature Range

-5 to +35℃(+23 to +95℉)

Operating Humidity Range

5 to 90%RH (No Condensation)

Input Video Signal

0.5-1.0 Volts P-P

Input DDC Signal

5 volts p-p(TTL)

Data transfer speed rate

6.75Gbps(Maximum)

Video Format Supported

DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K

3D video support

Video Output

HDMI

Support Video Color Format

xv-YCC/deep color 36bit

Support Audio Format

DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD

Power consumption

10watts(Maximum)

Dimension (L×W×H)

93.6x61x15mm

Net Weight

120g



Note: Specifications are subject to change without notice. Mass and dimensions are approximate.

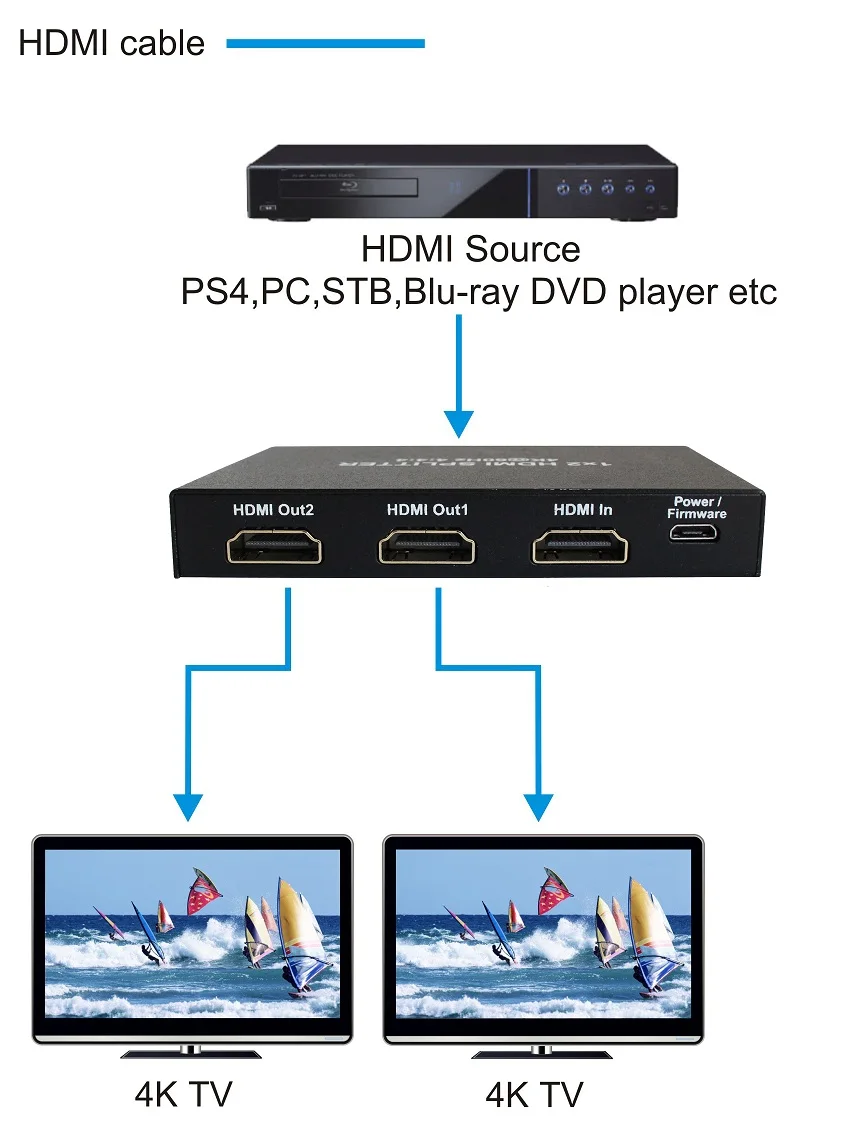

1*2 splitter Diagram:




1*4 splitter Packing Contents:



1. 4-port HDMI Splitter x 1pcs
2. DC 5V/3A Power Supply x 1 pcs
3. User manual x 1 pcs
