HDMI Matrix real 2.0 version 4x4 with PC TOOL WEB GUI Support HDR 4K@60hz 4 in 4 out

  • 1 - 9 Sets
    $150.00
  • 10 - 99 Sets
    $130.00
  • >=100 Sets
    $120.00
Color:
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Brand Name:
OEM
Model Number:
SX-MX09B
Place of Origin:
Guangdong, China
Type:
HDMI MATRIX
Feature:
4 in 4 out
Resolution:
4K60hz YUV 444
Bandwidth:
18G
HDCP Compliant:
hdcp2.2
Control:
IP; RS232; Button, IR, PC TOOL
Application:
HDR 10
Dimensions(WxHxD):
L216XW105XH34mm
Net Weight:
0.72kg
Power consumption:
13W(Max)
Supply Ability
Supply Ability:
10000 Set/Sets per Month 4k 4x4 hdmi matrix
Packaging & Delivery
Packaging Details
Package Contents
1). 1x HDMI Matrix
2). 1x 5V DC power supply
3). 1x Remote control
4). 1x IR Ext RX Cable
5). 1x Phoenix plugs for RS232 cable termination
6). 1x mounting kit
7). 1x CD for control software & user manual
Port
shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 5 To be negotiated
Product Description

4x4 HDMI2.0 Matrix Support 4K@60hz YUV4:4:4, 18Gbps, HDR

1) HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2) Support 3D

3) Bandwidth upto 18Gbps

4) HDCP2.2 input ,HDCP2.2 output

5) HDCP1.4 input, HDCP1.4 output

6) Support HDR10

7) 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio

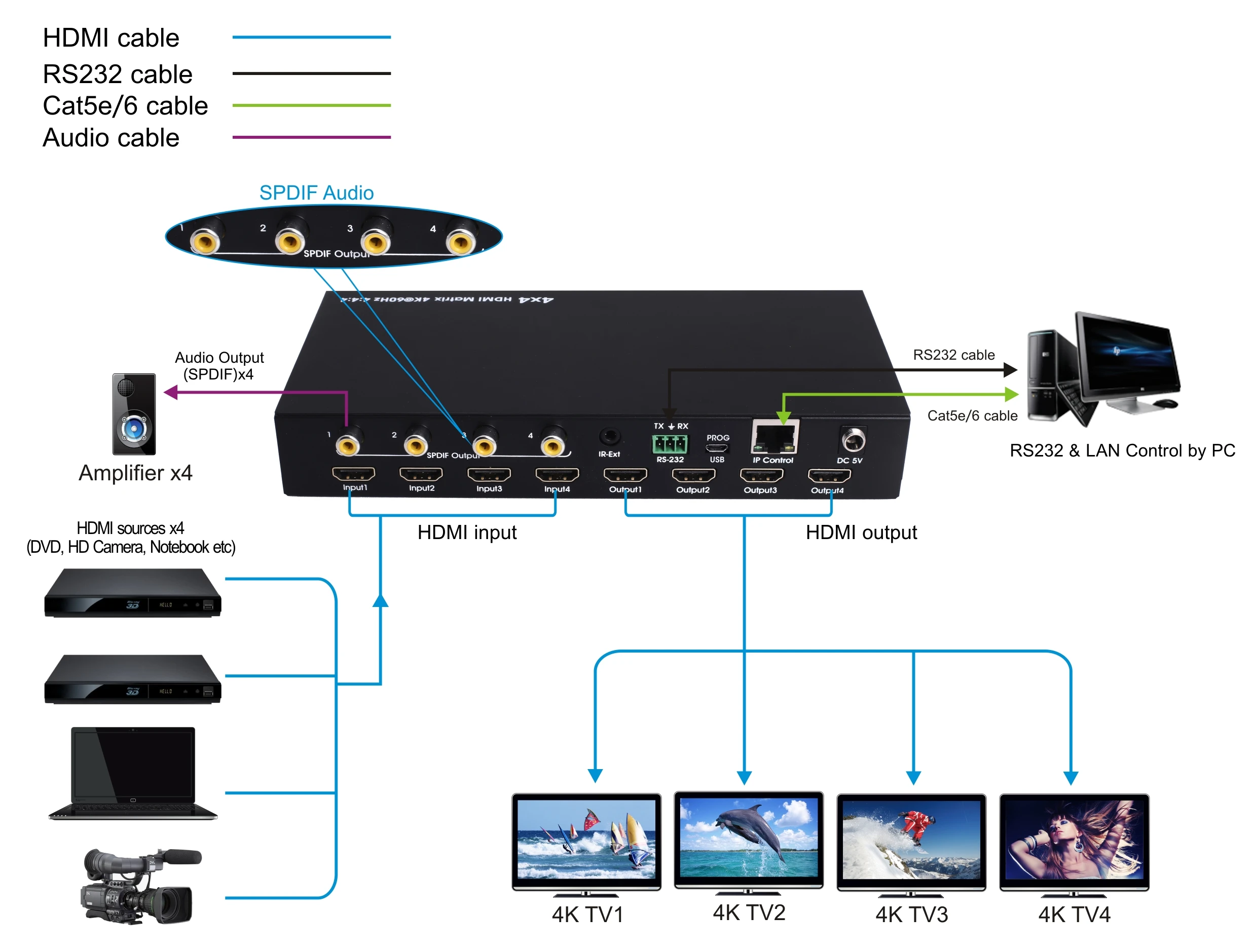

8) Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays

9) Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI
Control
10) Support Dolby True HD and DTS-HD master audio

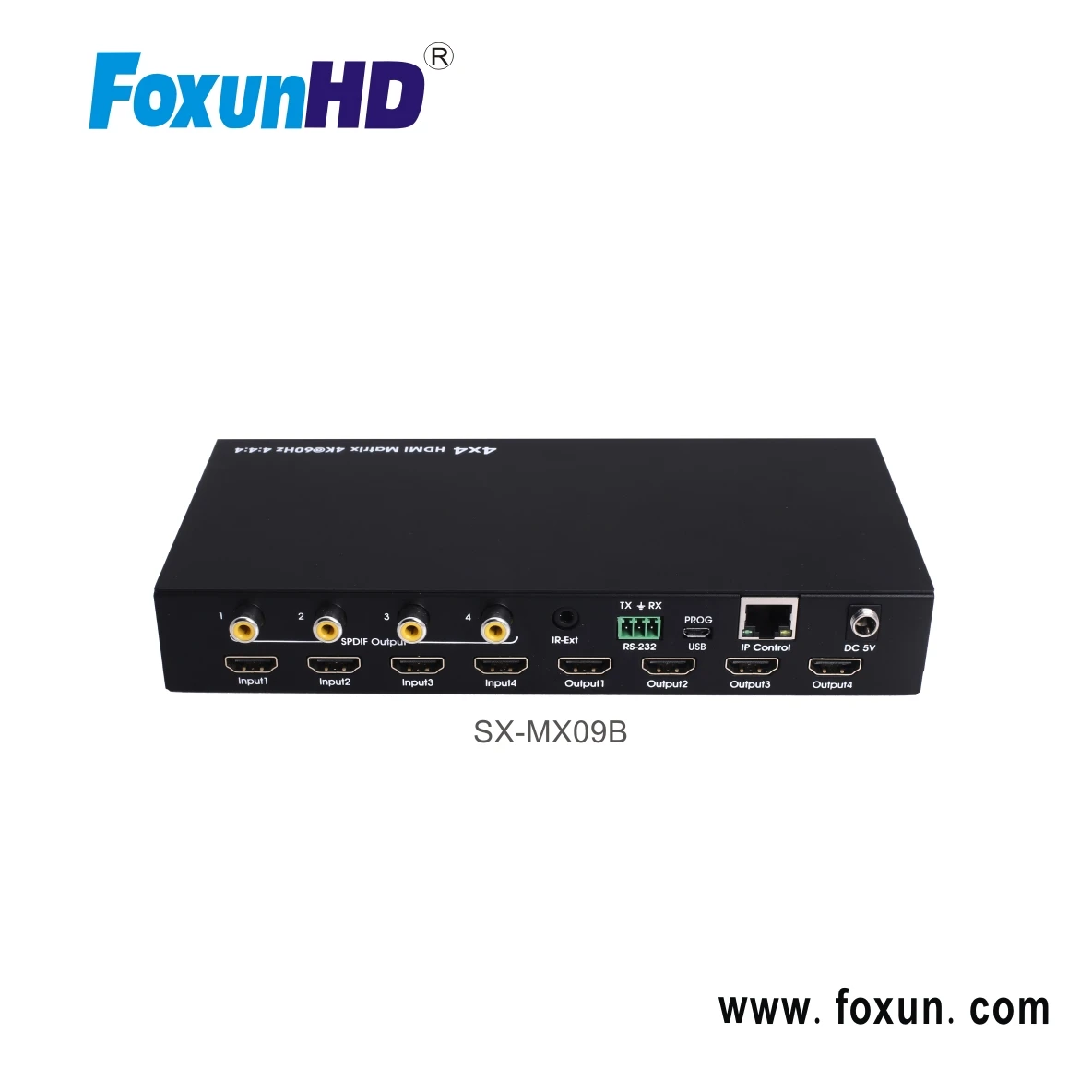

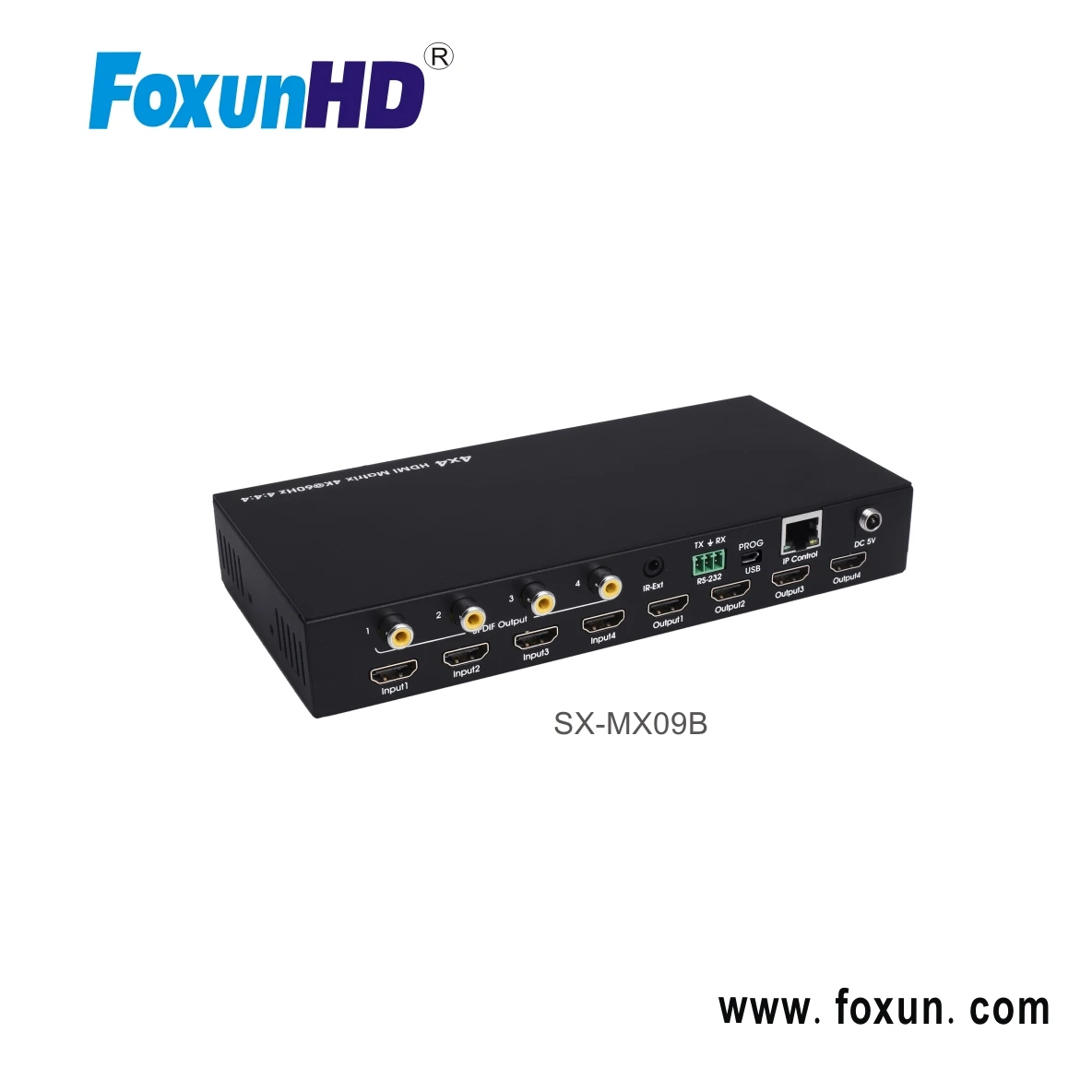

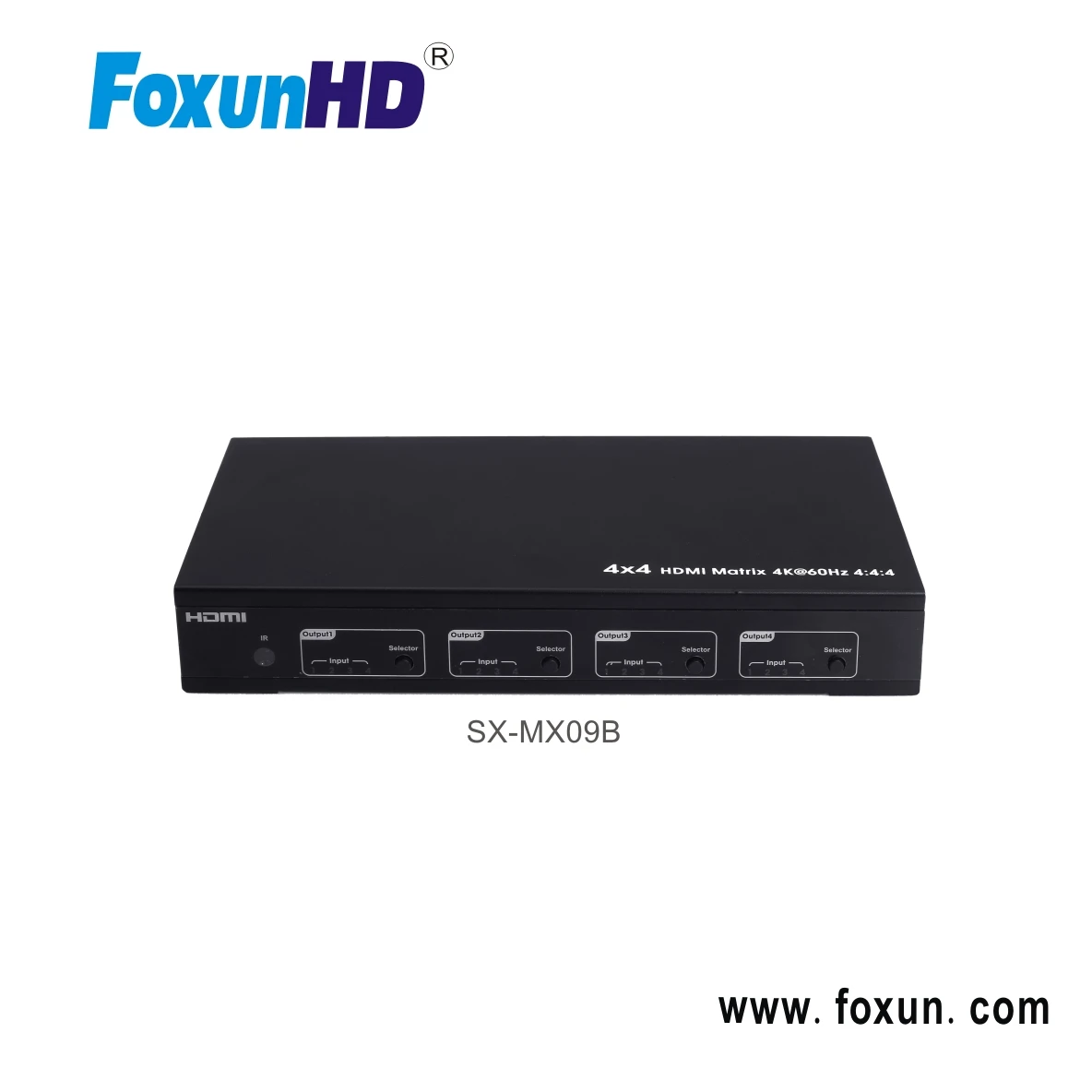

Detailed Images
Product Paramenters
Operating Temperature
23°F to 113°F (-5°C to 45°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Resolution
4K@ 60hz YUV4:4:4
HDCP Compliant
HDCP2.2 and HDCP1.4
Audio Format Supported
PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos
RS-232 serial port
3PIN terminal block connectors
Ethernet port (IP control)
RJ45, female
IR Ext port
1x3.5mm stereo jack
USB port
Micro 5P female
Bandwidth
18 Gbps
Default IP
192.168.1.168
Rack-Mountable
Rack ears included
Dimensions(WxHxD)
L216XW105XH34mm
Net Weight
0.72kg
Power consumption
13W(Max)
Certifications
